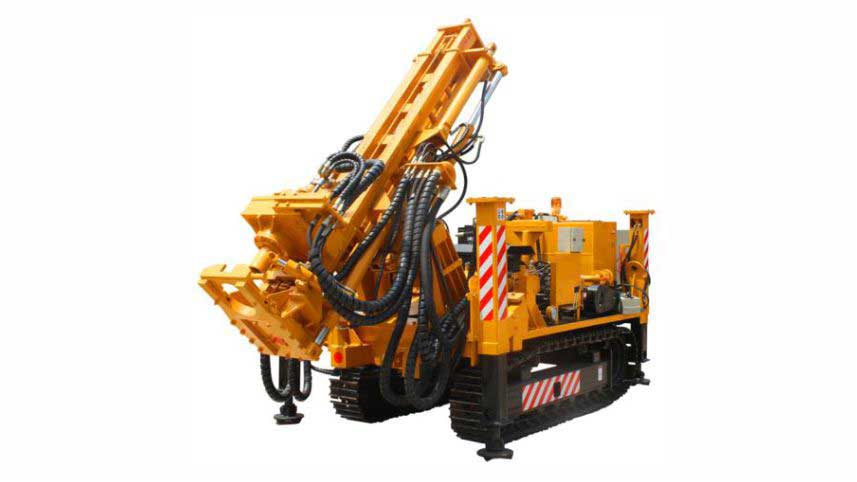

| Drilling Diameter | 4.5" - 6"(114mm - 152mm) |
| Drilling Depth | 116 Feet (35 Mtrs) |
| Application | Mines, Quarries |
| Formation / Strata | Soft / Medium / Hard |
| PRIME MOVER OF Hydraulic Pumps | Power Take off From Deck Engine |
| CARRIER / MOUNTING | Crawler |
| COMPRESSOR | Suitable Compressor ELGI / ATLAS COPCO / IR (The compressor shall be mounted on a separate trolley) |
| Maximum Operating Pressure | 180 Kg/Cm2 |
| MAST Capacity (WT) | 8 Tons |
| MAST Capacity (Rod Handling) | 10 Feet (3.0 Mtrs) |
| MAST Height | 5.0Mtrs |
| Centralizer Opening | 8" (204mm) |
| Pull Up Speed | 12 Mtr/Min |
| Pull Down Speed | 12 Mtr/Min |
| Pull Up Force | 2300 Kgfm |
| Pull Down Force | 2300 Kgfm |
| ROTATION SPEED | 0-80 |
| Rotary Head TORQUE | 120 Kgm |
| UNDER CARRIAGE SPEED | 2.0 Kmph |
| UNDER CARRIAGE Grad ability | 30degree |
| UNDER CARRIAGE Drive | Independent Hydraulic Motor for each Track |
| DIMENSIONS Overall Length | 5400 (17' 8") |
| Overall Width | 2,200mm (7' 2") |
| Overall Height | 2,400mm (7' 9") |
| Total Weight | 4,600kgs (10120 lb) |
| Advantages |
* Easy Movability with Crawler in uneven Terrains. * Provision for Angle Drilling * Mast Tilting oscillation and swing operation |
