STR 1000 | STR 1500 | STR 2000 | |
Drilling Diameter | 6.0" - 8.0" (152mm - 203mm) | 6" - 8 1/2" (152mm - 216mm) | 6" - 10" (152mm - 254mm) |
Drilling Depth | 1000 Feet (305 Mtrs) | 1500 Feet (457 Mtrs) | 2000 Feet (610 Mtrs) |
Application | Water Well Drilling | Water Well Drilling | Water Well Drilling |
Formation / Strata | Soft / Medium / Hard | Soft / Medium / Hard | Soft / Medium / Hard |

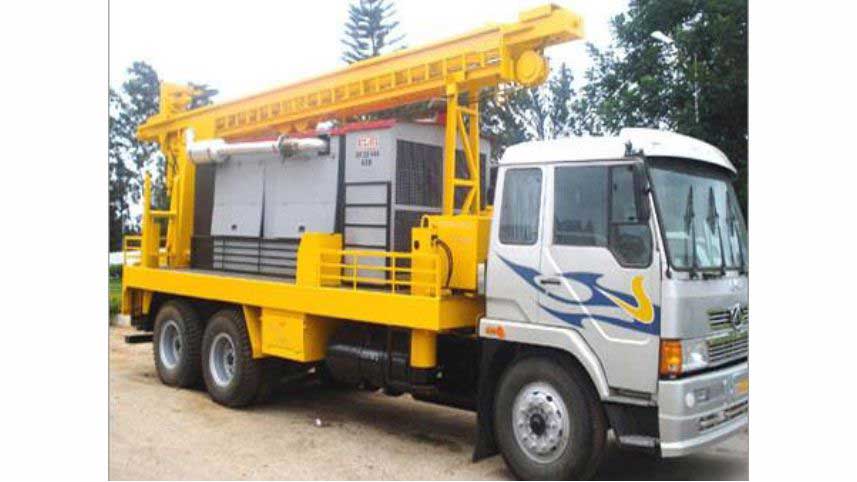

PRIME MOVER OF Hydraulic Power Pack | Truck Mounted Rig with Power from TRUCK ENGINE / DECK ENGINE | Truck Mounted Rig with Power from TRUCK ENGINE / DECK ENGINE | Truck Mounted Rig with Power from TRUCK ENGINE / DECK ENGINE |
CARRIER / MOUNTING | Truck for Mounting of Rig & Air Compressor | Truck for Mounting of Rig & Air Compressor | Separate Truck for Mounting of Rig & Air Compressor |
COMPRESSOR | Suitable Compressor ELGI / ATLAS COPCO / IR | Suitable Compressor ELGI / ATLAS COPCO / IR | Suitable Compressor ELGI / ATLAS COPCO / IR |
Maximum Operating Pressure | 230 Kg/Cm2 | 230 Kg/Cm2 | 230 Kg/Cm2 |
Hydraulic Oil Tank Capacity | 650 Ltrs | 650 Ltrs | 700 Ltrs |
MAST Capacity (WT) | 18 Tons | 27 Tons | 40 Tons |
MAST Capacity | 20 Feet (6.1 Mtrs) | 20 Feet (6.1 Mtrs) | 20 Feet (6.1 Mtrs) |
MAST Height | 9 Mtrs | 9 Mtrs | 9 Mtrs |
MAST Construction | Sturdy Structural Channel | Sturdy Structural Channel | Sturdy Structural Channel |
Centralizer Opening | 10 5/8" (270mm) | 12" (304mm) | 14" (355.6mm) |
Pull Up Speed | 42 Mtrs/Min | 35 Mtrs/Min | 20 Mtrs/Min |
Pull Down Speed | 50 Mtrs/Min | 40 Mtrs/Min | 30 Mtrs/Min |
Pull Up Force | 8590 Kgfm | 14070 Kgfm | 20940 Kgfm |
Pull Down Force | 5890 Kgfm | 7420 Kgfm | 10680 Kgfm |
ROTATION SPEED | 0-90 | 0-120 | 0-120 |
Rotary Head TORQUE | 245 Kgm | 245 Kgm | 490 Kgm |
Hydraulic JACKS Options: Box Type Jack | 100 X 63 X 610 Stroke 100 X 63 X 800 Stroke | 125 X 70 X 610 Stroke 100 X 63 X 800 Stroke | 125 X 70 X 610 Stroke 100 X 63 X 800 Stroke |
Break Out wrench (To Open Drill Rod) | 80 X 40 X300 Stroke | 80 X 40 X300 Stroke | 100 X 50 X 300 Stroke |
WATER INJECTION PUMP | 50 Lpm | 80 Lpm | 80 Lpm |
ROD CHANGER | Manually Operated Single Rod Changer | Manually Operated Single Rod Changer | Manually Operated Single Rod Changer |
Note : Due to continuous development all the above specifications are subject to change
