Drilling Rigs & Accessories

Truck Mounted 100 m

STR 100

Special Purpose Single Truck Mounted Drilling Rig

Special-purpose single-truck-mounted DTH + Rotary drill rig for 100 m depth. Versatile for water-well, solar and pilling work.

Water Well Solar Pilling

View specifications

Crawler Mounted 200 m

STR GT200

Crawler Mounted Rig — Multi Purpose Machine

Multi-purpose crawler-mounted rig for geo-technical soil investigation — DTH, Rotary, Core, SPT and Auger drilling in one machine.

Geo Technical Soil Investigation Core Drilling

View specifications

Tractor Mounted 60 – 200 m

STR DTH T200

Tractor Mounted Rig — Multi Purpose Machine

Tractor-mounted multi-purpose rig for water well, solar, pilling, mining, earthing and geo-technical work. Mounts on 60 / 75 / 90 HP 4×4 tractors.

Water Well Solar Pilling

View specifications

Truck Mounted 250 m

STR 250

Truck Mounted Rig — Multi Purpose Machine

Truck-mounted multi-purpose rig for water-well, solar and pilling work up to 250 m depth with a 5,500 Nm rotary head.

Water Well Solar Pilling

View specifications

Skid Mounted 300 m

STR DTH 300

Skid Mounted Rig with Single Rod Changer

Skid-mounted water-well rig with single rod changer. 300 m depth with 180 HP Ashok Leyland deck engine.

Water Well

View specifications

Truck Mounted 400 m

STR DTH 400

Single Truck Mounted Rig with Single Rod Changer

Single-truck-mounted rig with 400 m depth capability. 6,500 Nm rotary head, 180-220 HP deck engine or truck engine power.

Water Well

View specifications

Truck Mounted 610 m

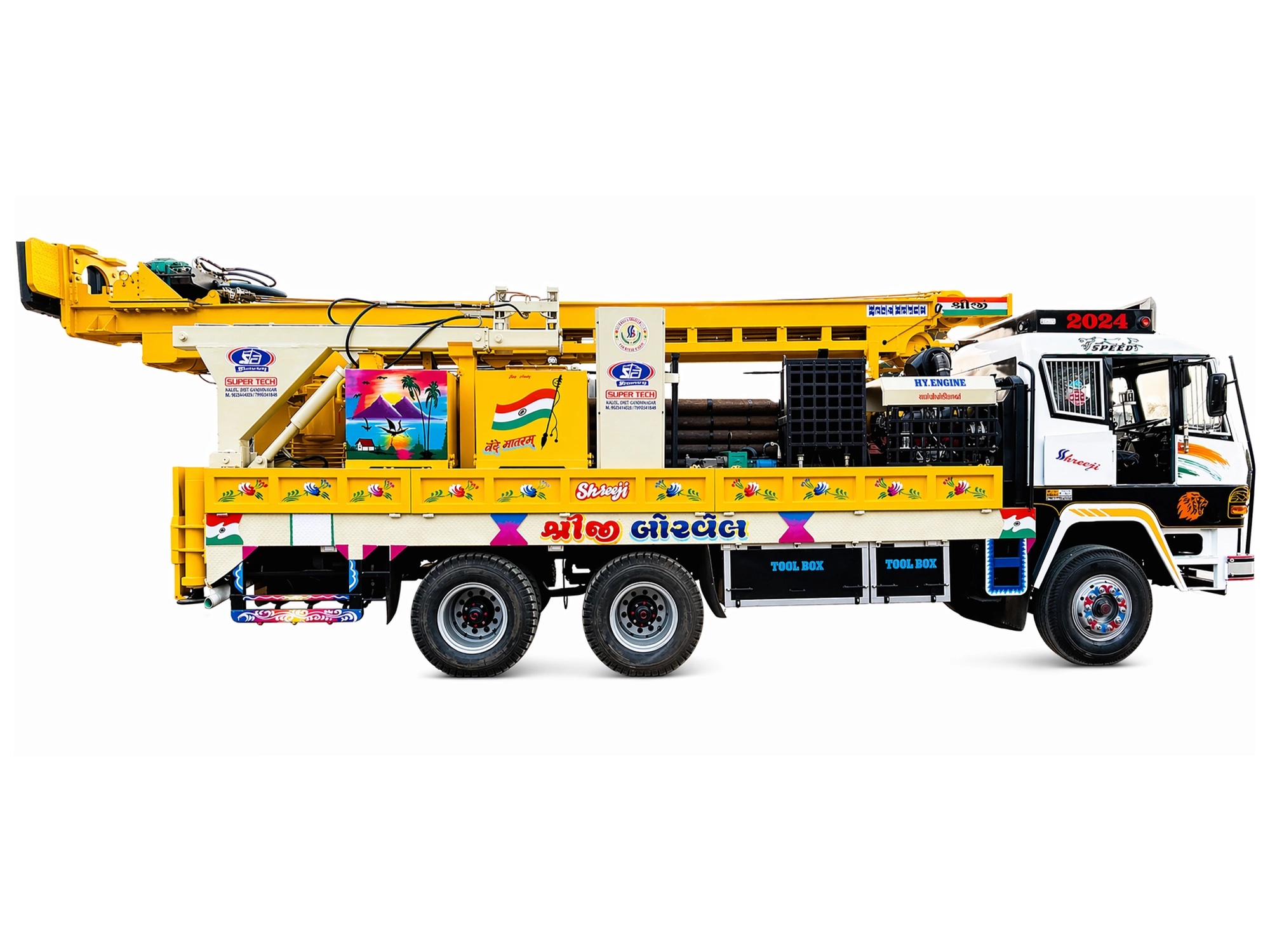

STR DTH 600

Two Truck Mounted Rig with Hydraulic Rod Changer

Two-truck-mounted rig with hydraulic rod changer. 610 m depth, 17,000 kgf pull-up, 1,350 CFM compressor support.

Water Well

View specifications

Skid Mounted 800 m

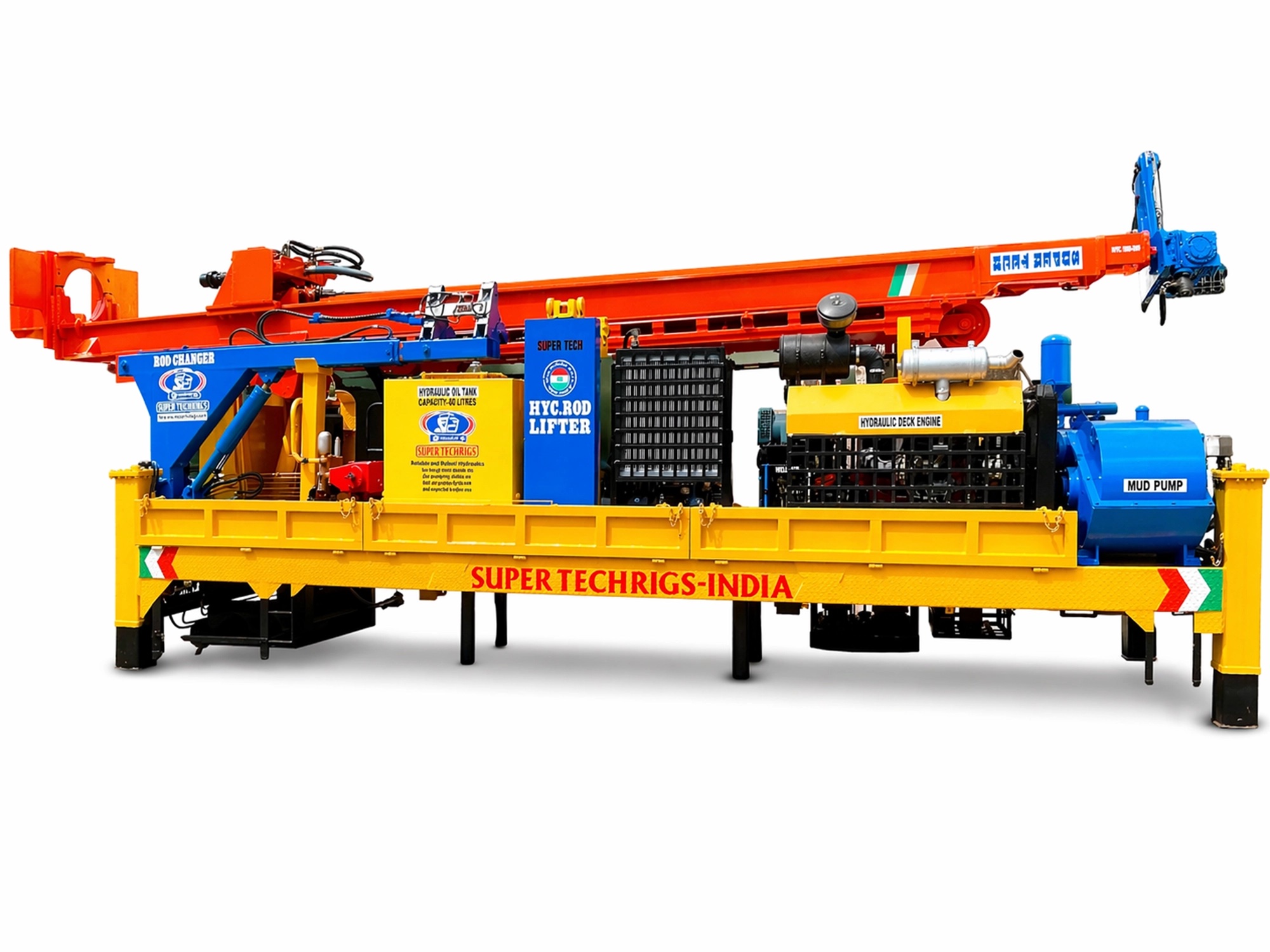

STR DTH 800

Skid Mounted Rig with Hydraulic Rod Changer

Skid-mounted rig with hydraulic rod changer. 800 m depth, 27,000 kgf pull-up, dual 160 mm feed cylinders.

Water Well

View specifications

Truck Mounted 1,000 m

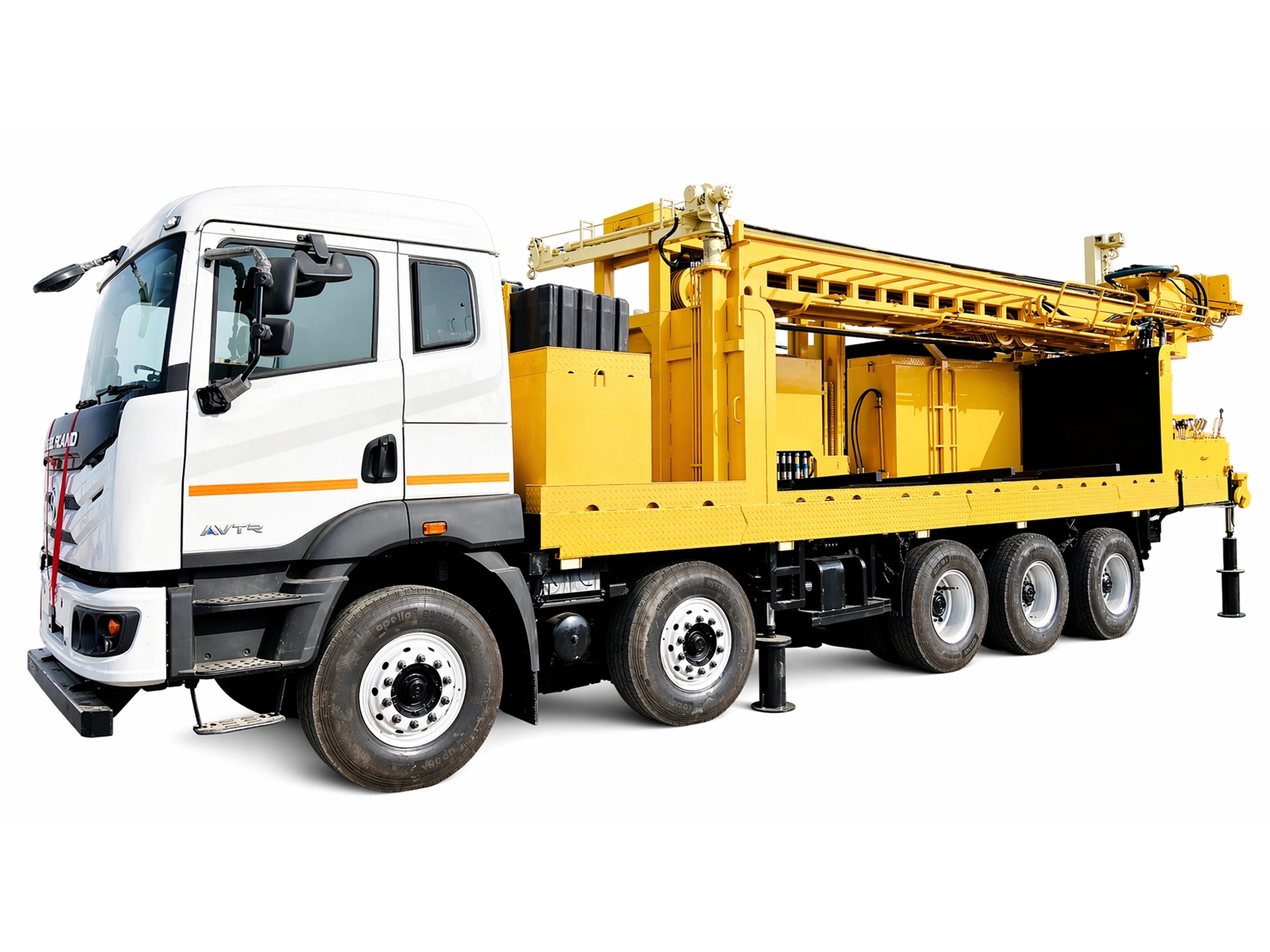

STR DTH 1000

Two Truck Mounted Rig with Hydraulic Rod Changer

Two-truck-mounted rig reaching 1,000 m depth. 29,000 kgf pull-up, 16,000 Nm rotary head, dual compressors + air booster.

Water Well Dewatering

View specifications

Skid Mounted 1,200 m

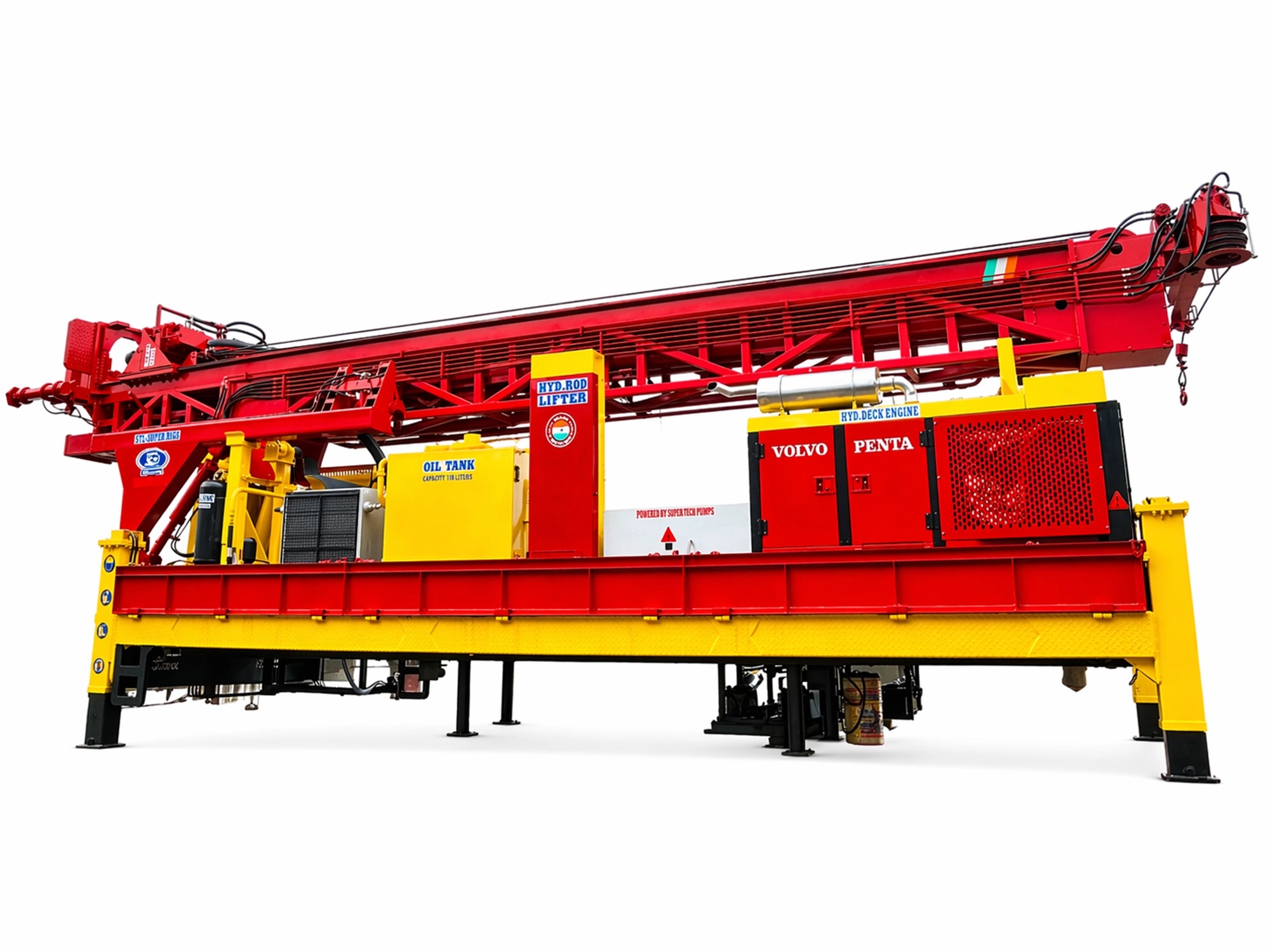

STR DTH 1200

Skid Mounted Rig with Hydraulic Rod Changer

Our flagship — skid-mounted 1,200 m deepest-capacity rig with a massive 52,000 kgf pull-up force and 18,000 Nm rotary head.

Water Well

View specifications

Multi-Mount Custom spec

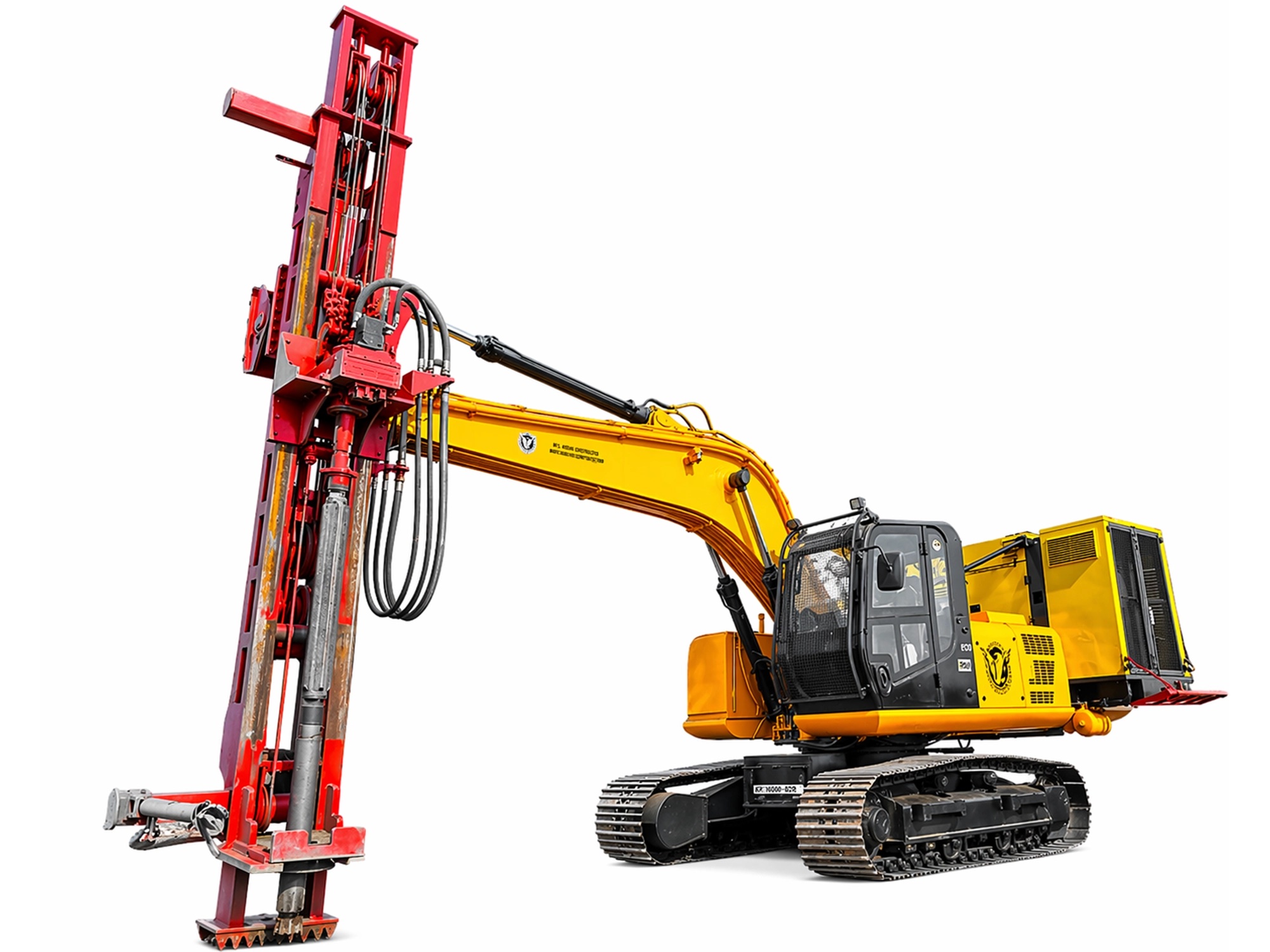

Customised Drilling Rigs

Built to Customer Specification

Customised drilling rigs built to client specification — truck, trolley, crawler, excavator and specialty mounts across the full range.

Bespoke Configurations Non-standard Mounts Special-purpose Builds

View specifications

Accessories Up to 1,200 m capacity

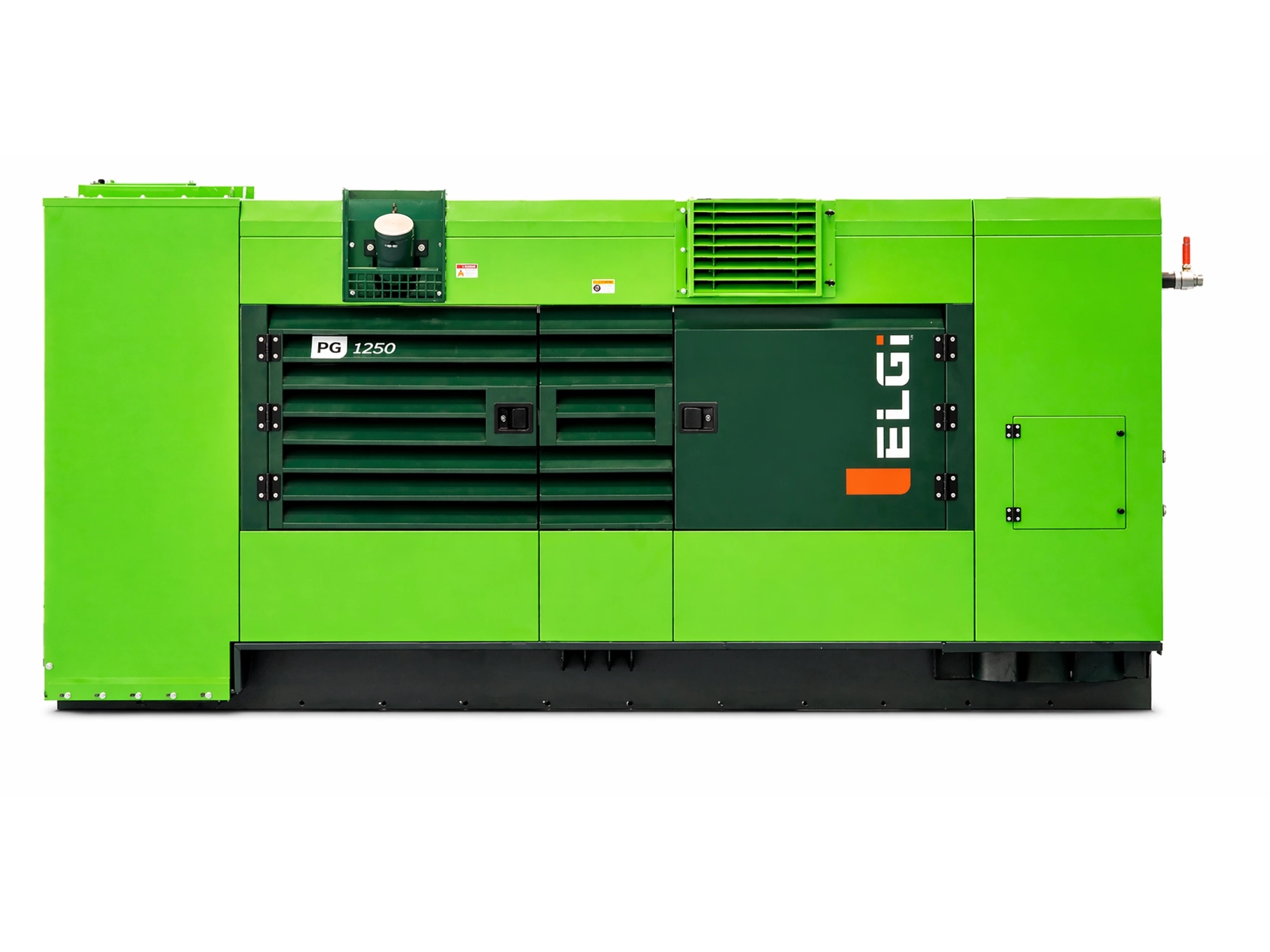

Air Compressors & Spare Parts

Atlas Copco · ELGI · Doosan / Bobcat · Chicago Pneumatic

Atlas Copco, ELGI, Doosan/Bobcat, and Chicago Pneumatic compressors from 185 – 1,500 CFM. Skid or trolley mounted, with full spares support.

Air Supply for DTH Drilling Power Site Air

View specifications

Accessories Full drilling-tool range

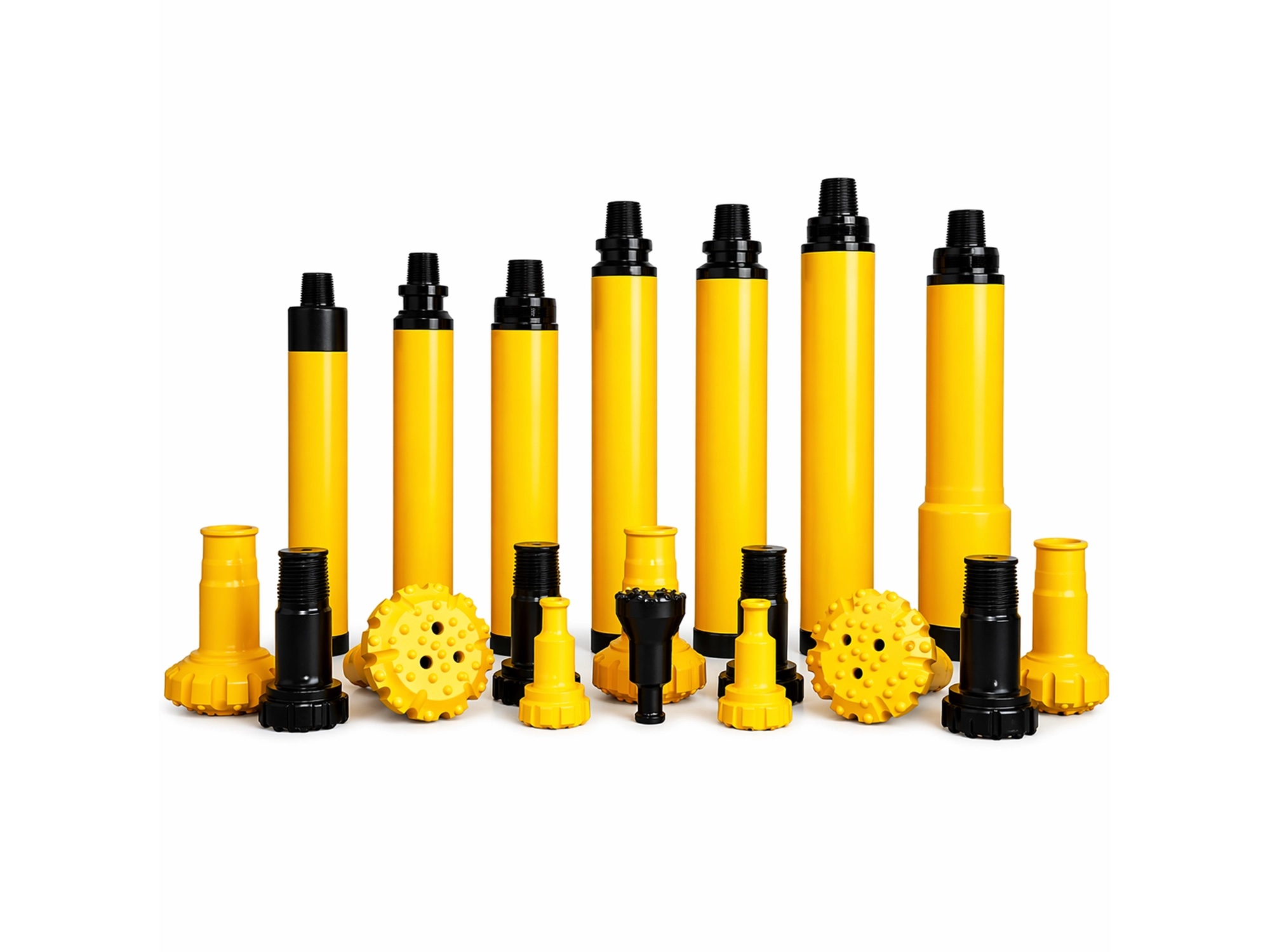

DTH Air / Mud Rotary Drilling Tools

Hammers · Button Bits · Mud Pumps

DTH hammers (100-300 mm), button bits (4"-20"), rock-roller / tricone / PDC bits, and duplex mud pumps up to 2,400 LPM.

Water Well Mining Soft / Medium / Hard Formations

View specifications

Accessories Up to 1,500 m

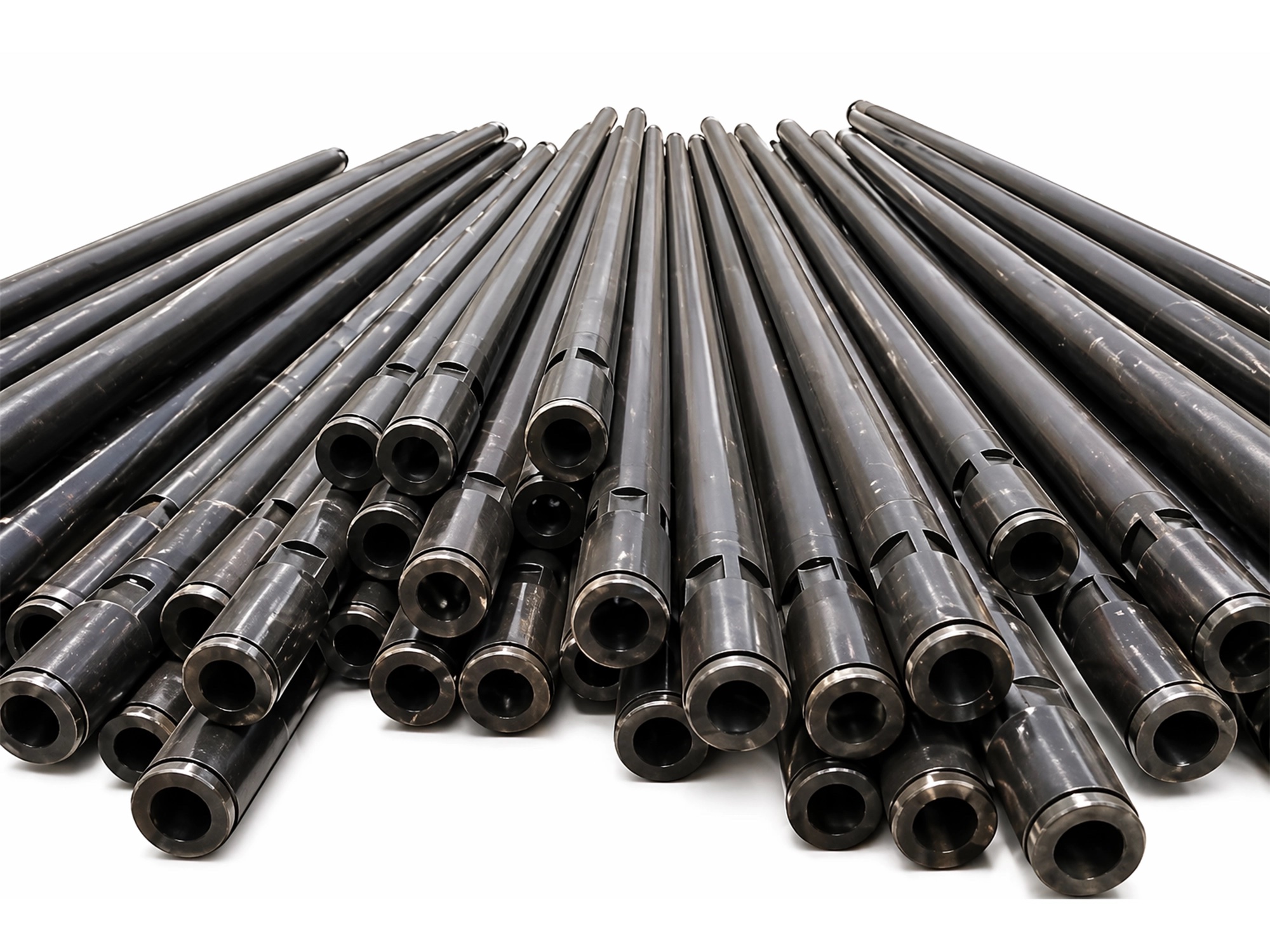

DTH Drilling Rods & Accessories

Friction-Welded Induction-Hardened

Seamless steel drill rods 63 – 180 mm (2½"-7"), friction-welded with induction hardness. API-standard threads, drilling capacity 1,500 m.

Water Well Mining Pilling

View specifications
